Three-compartmented
BasisFeeder
Made of tough plastic,
reuleaux inspired triangular
with high capacity
MATERIAL

For

free-choice supplementation

of grazing livestock

PICS & CLIPS

For

DAIRY AND BEEF CATTLE

as well as

FOR SHEEP

DISTRIBUTORS

Description of the BasisFeeder

For economic optimal and physiologically correct free-choice mineral supplementation of grazing cattle and sheep

BasisFeeder protects expensive mineral supplements from rainwater and dung etc. by help of a rubber cover, which the animals push up with their heads when they eat. The sloping outer walls ensure, together with a comfortable height that animals neither tips it around nor steps on it. Easy to move and inexpensive to transport. Falls discreetly into the landscape.

The special triangular form, reuleaux triangular inspired, with round corners makes the dimensions of the feeder small in comparison to its huge capacity of 74 litres volume - dependent on the density of the mineral feed supplements, for instance equal to a capacity about 120 kg - despite small dimensions, makes it cheap to transport, and is one of the reasons for a cheap price in comparison to other feeders.

A reuleaux triangle is a special geometrical form, and as visulaised here, the form provides for a higher volume than a circular form that shall fit into the same square.

Other information and facts

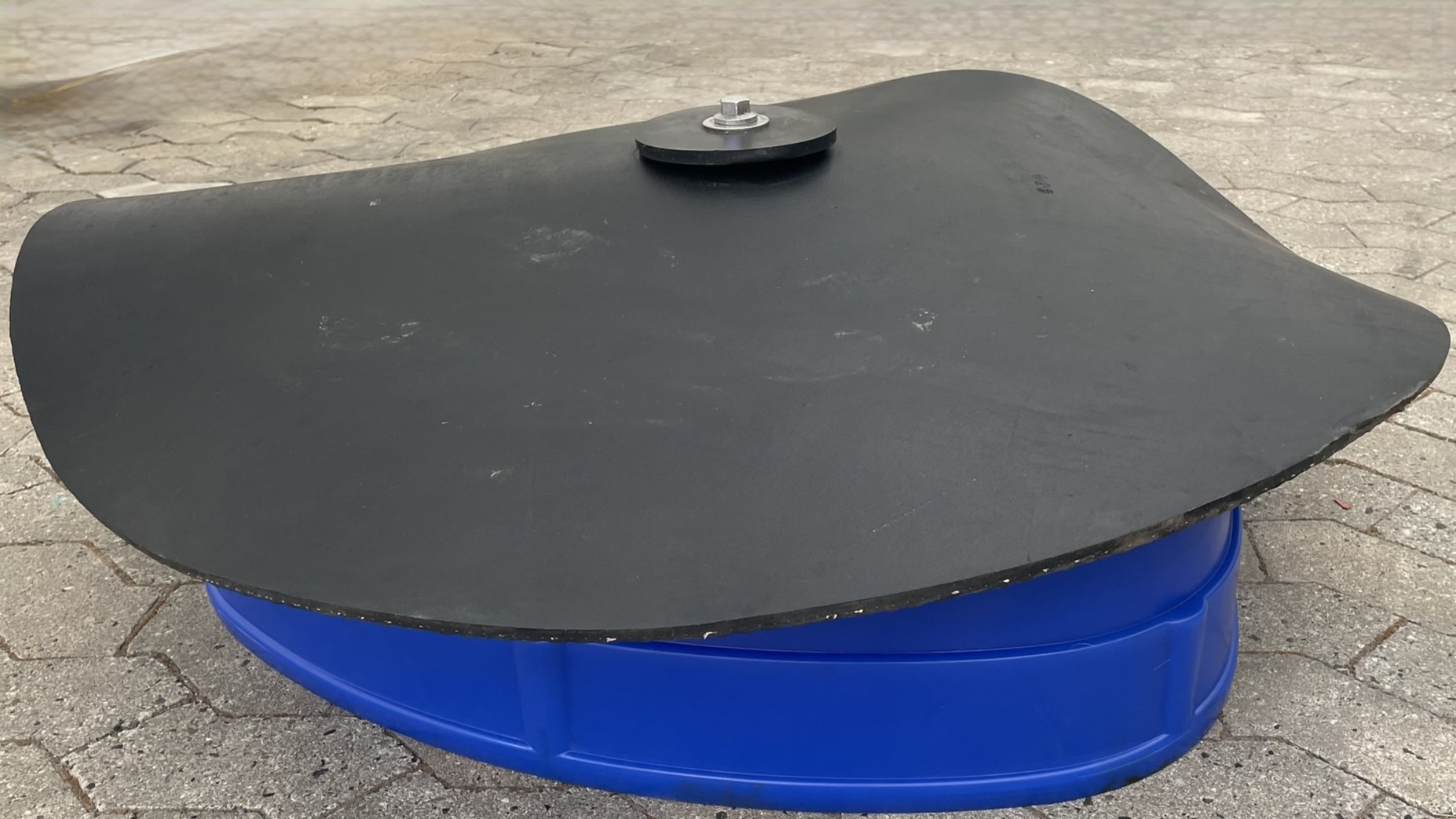

The top is a strong and reinforced rubber sheet, which the animals push up with their heads when they eat.

Has a total volume of 74 litres, including three compartments of each 19 litres, which provides the opportunity to use it for different mineral types at once. Can for instance be used for both granulated minerals, buckets with molassed minerals, fodder salt and lick stones. The three compartments are perfect as protection and fixation of mineral buckets with diameters of up to 30 cm (bottom). The molassed minerals maintain in this way an appetizing moist surface. The three compartments are perfect as protection and fixation of mineral buckets with diameters of up to 30 cm (bottom). The molassed minerals maintain in this way an appetizing moist surface.

One feeder serves up to about 50 animals.

The plastic parts of the feeder is made of non-toxic materials in accordance with EU's food hygiene regulations.

Height: 35 cm - Width: 80 cm - the rubber cover has a diameter of 100 cm. - Weight: 18 kg.

It is possible to re-use all parts of the BasisFeeder. The plastic parts are marked with a re-circulation sign for correct sorting.

The BasisFeeder is frost durable so it is possible to let it stand outside during winter.

The colours of the plastic of the BasisFeeder is protected by a UV filter in order to reduce bleaching.

The mineral feeder is well tested and applicable for the following types of livestock:

  • All types of grazing cattle, also those with long horns
  • Grazing sheep

BasisFeeder pics & clips

All
|
Dairy cattle
|
Beef cattle
|
Sheep
BasisFeeder packing
BasisFeeders are stacked on pallets with parts for 20 units per pallet. The pallet measures 150 cm x 80 cm x approx. 180 cm (l x w x h) and weighs approx. 375 kg.
High quality and easy installation
'We love the quality and how easy they are to set up', says Heike Berens from Galnagh Pastoral Company, a sheep operation in Victoria, Australia.
The sheep take to BasisFeeders quickly
'We have now had time to install the feeders and observe how quickly the sheep take to them', says Heike Berens from Galnagh Pastoral Company, a sheep operation in Victoria, Australia.
Protects against the rain
The rubber cover protects the minerals from rain and other contaminants.
Three compartments
With three compartments, one can provide three different kinds of minerals.
Discreet design
With low height and dark colors, the BasisFeeder discreetly falls into the landscape.

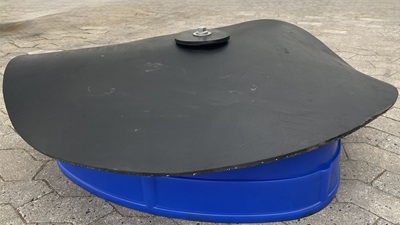

Reinforced rubber cover
The bottom is made of strong plastic and the rubber cover is reinforced.
Large capacity
A unique design provides a large capacity.
A good choice
With BasisFeeder you get a solution for optimal allocation of minerals to grazing cattle and sheep.

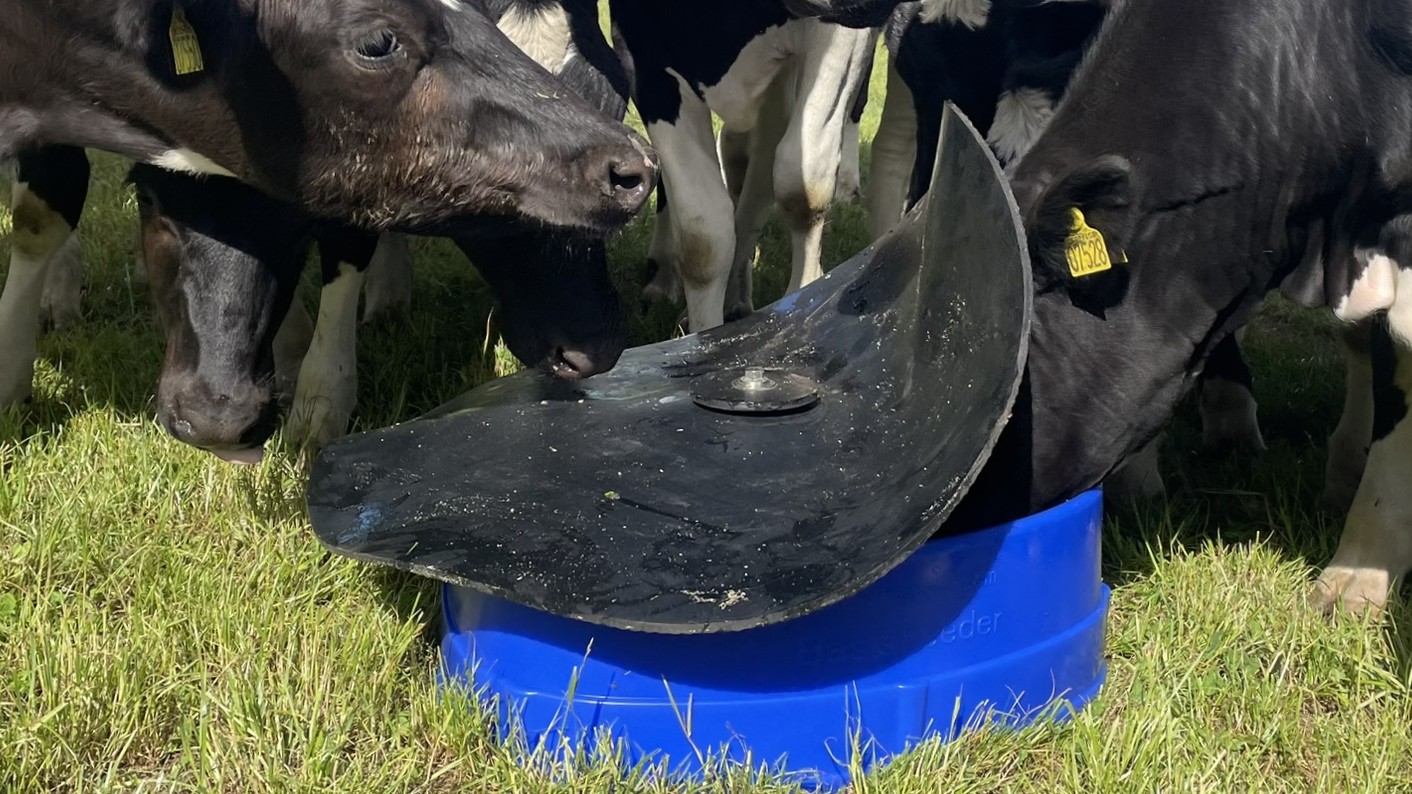

Quick learning
The animals quickly learn to lift the rubber cover.
Stainless steel
Center bolt, washers and nut are in stainless steel.
Lambs > 25 kg require mineral supplementation
Lambs require mineral supplementation when they starts eating grass, as a rule, when they reach a weight of about 25 kg
Reinforced rubber cover
BasisFeeder
Good for cattle with long horns
BasisFeeder works well for animals with 'real horns'. It is here being used by the bull of a Texas Longhorn herd in Denmark. Texas Longhorns is the cattle breed with the longest horns in the whole world - the record is currently 2.4 m for bulls and cows.
Satisfied users
The Danish Texas Longhorn breeder Viggo Mortensen says that his animals love the BasisFeeder, and that it works perfectly!
Proven type, further developed
'BasisFeeder' is the result of further development and improvement of similar types of mineral feeders. What is special about 'BasisFeeder' is its Reuleaux triangle inspired shape, which despite its compactness has a large capacity. 'BasisFeeder' is also ideal for placing buckets with molassed minerals, so that they do not tip over and spills their content, but protects them from being dried from sun and wind or soaked by rain.

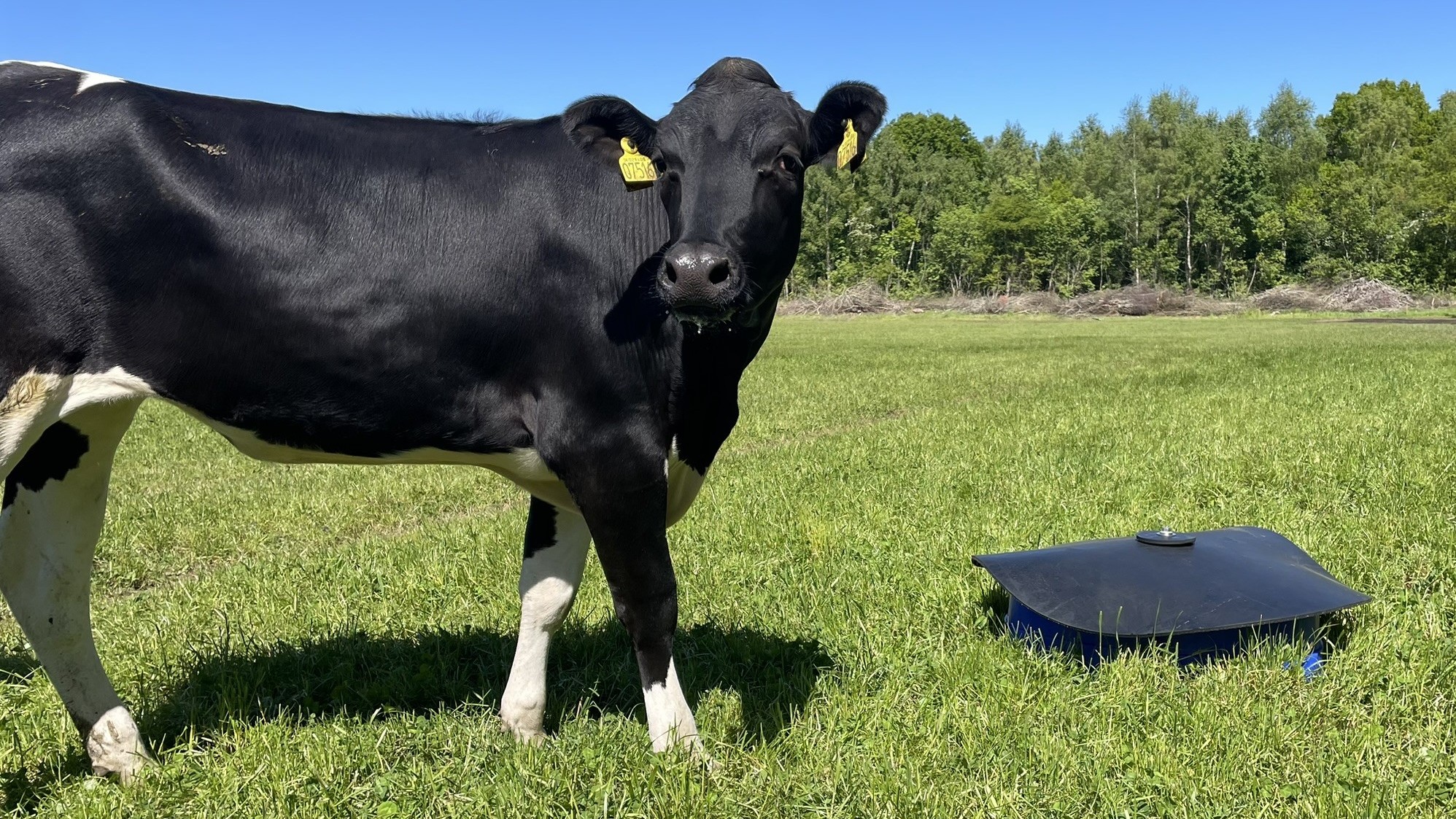

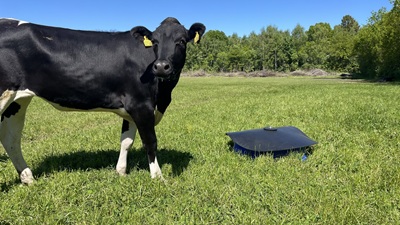

Discrete in the landscape
BasisFeeder ensures in a discrete way an optimal mineral supplementation.
Difficult to tip over
Pregnant ewes of the breed Whiteheaded Marshsheep.
Three compartments
Each of the three sections of the BasisFeeder contains 17 liters, and the total volume is 66 liters.
Easy anchoring possible
As the mineral feeder between the heavy plastics walls is having a narrow lumen, it is possible to anchor it by placing it over one or more poles which protrudes approximately. 20 cm up from the ground surface.
Reuleaux triangular shaped
The special triangular shape with rounded corners makes BasisFeeder cheap to transport, provides a high capacity despite small dimensions, and is one of the reasons for a low price compared to other mineral feeders. Therefore this very unique and innovative element in the shape of the BasisFeeder is patented.
Provides good hold for buckets
The three compartments are perfect as protection and fixation of mineral buckets with diameters of up to 30 cm (bottom). The molassed minerals maintain in this way an appetizing moist surface.
Made of strong plastic
The BasisFeeder is solid made of strong plastic and rubber, weighs just over 18 kg, 80 cm wide and approx. 34 cm high. The angled outer walls ensure, together with a comfortable height that animals neither tips it around nor steps on it. Here with Scottisch Highland cattle.
Particularly suitable for cattle with horns and sheep
BasisFeeder is particularly suitable for cattle with horns and sheep. Here with Whiteheaded Marshsheep.
Rubber cover protects the minerals

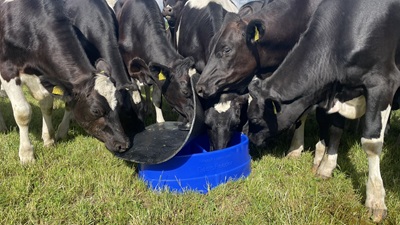

BasisFeeder protects expensive mineral supplements from rainwater and dung etc. by help of a rubber cover, which the animals push up with their heads when they eat - here with 2nd years heifers of Danish Holstein.
BasisFeeder video clips
Image Description

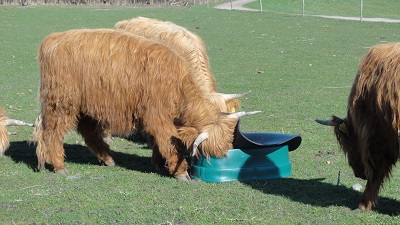

Cattle with large horns

Cattle with large horns can without difficulty use a BasisFeeder.

Image Description

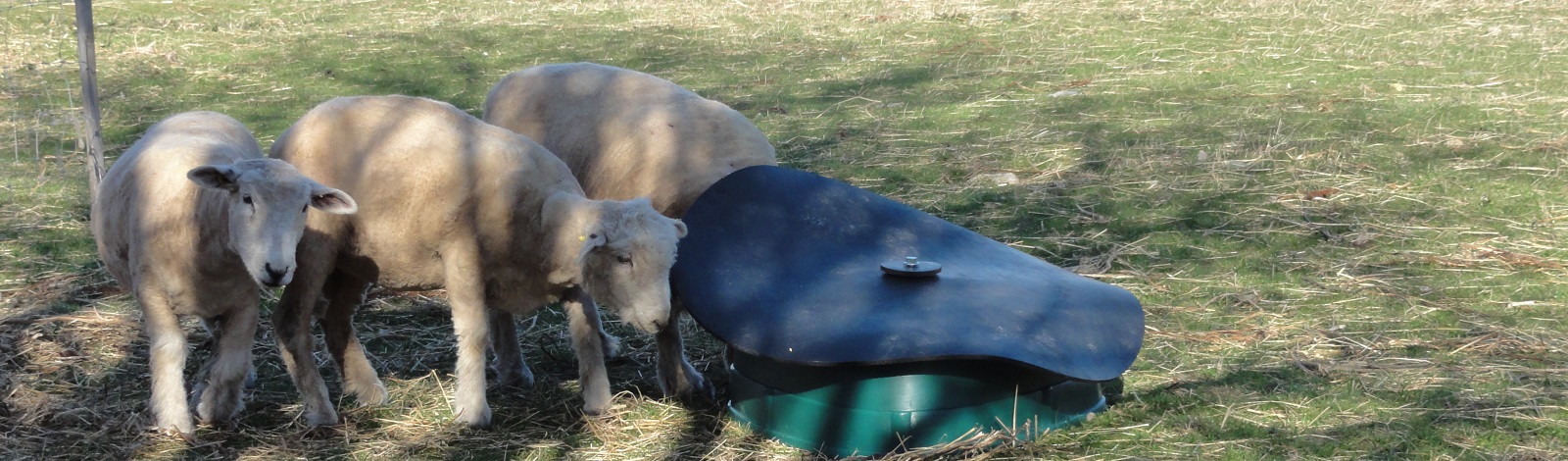

BasisFeeder is suitable for sheep

With a BasisFeeder, you can ensure an optimal health and growth of the sheep, and lambs can use the feeder from their weaning age, where their weight is about 25 kg.

Image Description

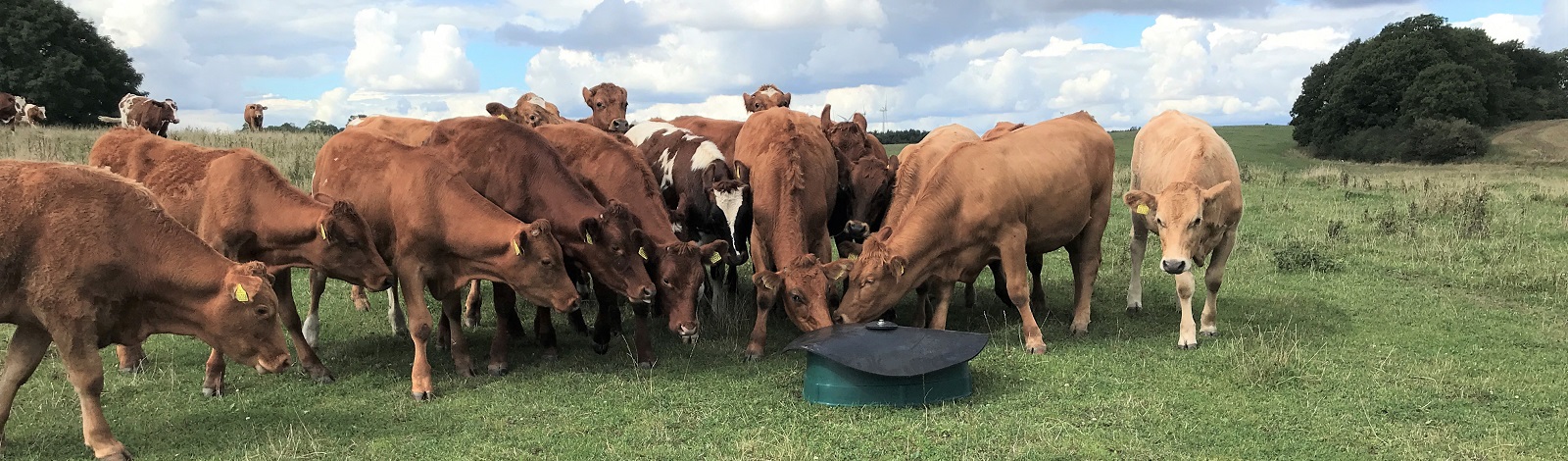

BasisFeeder is suitable for all types of cattle, besides sheep

The feeder provides for the most economic and easy way of free-choice supplementation of your grazing cattle and sheep to keep them healthy and productive.



Material for download

Conformité Européenne (logo)

EU Declaration of Conformity



Product card

The product card is meant for a quick introduction, and it holds the most important facts and information about the feeder.

EN version DE Version DA version EE version LT version



Instruction for assembly and use

The instruction for assembly and use is included as part of the assembly set that follows each feeder.

 Multilingual version

You may of course also download pictures from above by opening them, right click and select download.
